NOTE: The current drops quickly over the first 30 minutes of use. Wait until the current is stable before X-ray mapping.
1. Select Mode > EDS Image.

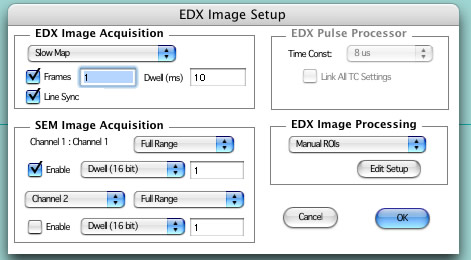

2. Select the Setup icon. Choose an appropriate dwell time in EDX Image Acquisition.
NOTE: For the low resolution test collection, use a dwell of 5 ms. For any higher resolution maps, a dwell time between 5 and 20 ms is suitable.
In the EDX Image Setup window, choose Edit Setup under EDX Image Processing.
3. Select elements by clicking in the element's box.
4. To assign a different color to each element, right-click on the element > select Edit > Set Color > and choose a color. Click OK.
5. Select OK in the EDX Image Setup menu once all of your choices have been made.
6. Choose the correct magnification and kV in Options. NOTE: If the correct magnification is not in the preset menu, you will be able to manually enter the correct magnification in the Step 7 after selecting the camera icon.
7. Perform a quick acquisition first by choosing a low resolution map of 320 x 240 in EDX Image.
8. Select the camera icon in EDX Image. Once you select the icon, a magnification

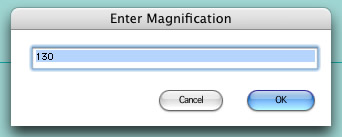

dialog box appears. Enter the correct magnification.
The map consists of a secondary electron image and a scan for each element chosen.

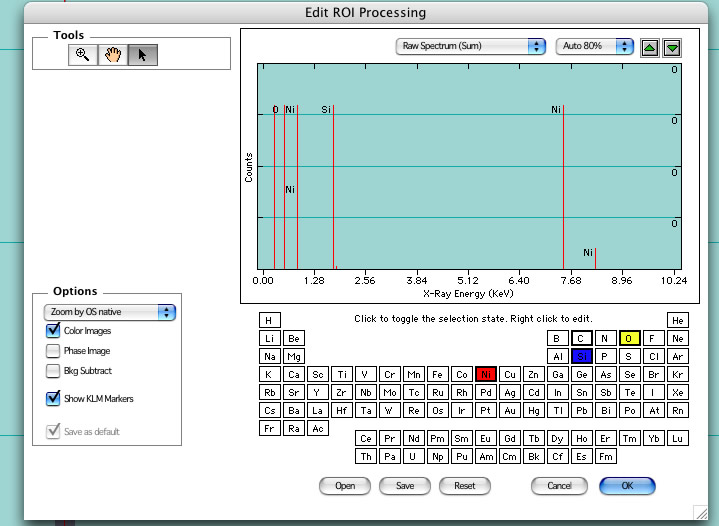

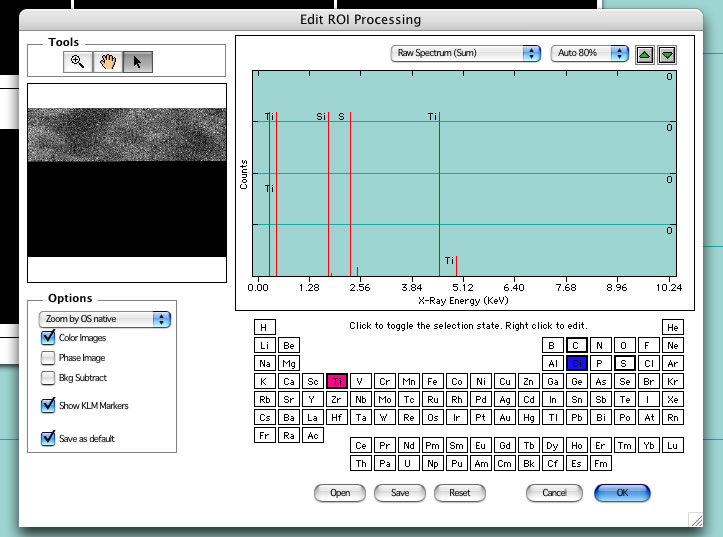

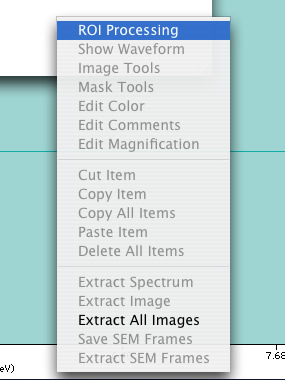

9. Once the acquisition has begun, you can still edit the collection in live time by right-clicking in the image area and selecting ROI Processing. A menu with the same functions as the Setup menu will appear.
Use the directions in Step 3 to edit.
10. If the map is satisfactory, perform again using a high resolution.
11. Save the map in your directory in the “Temporary User Files” folder.
