X-Ray Diffraction

Scintag XDS-2000 PTS

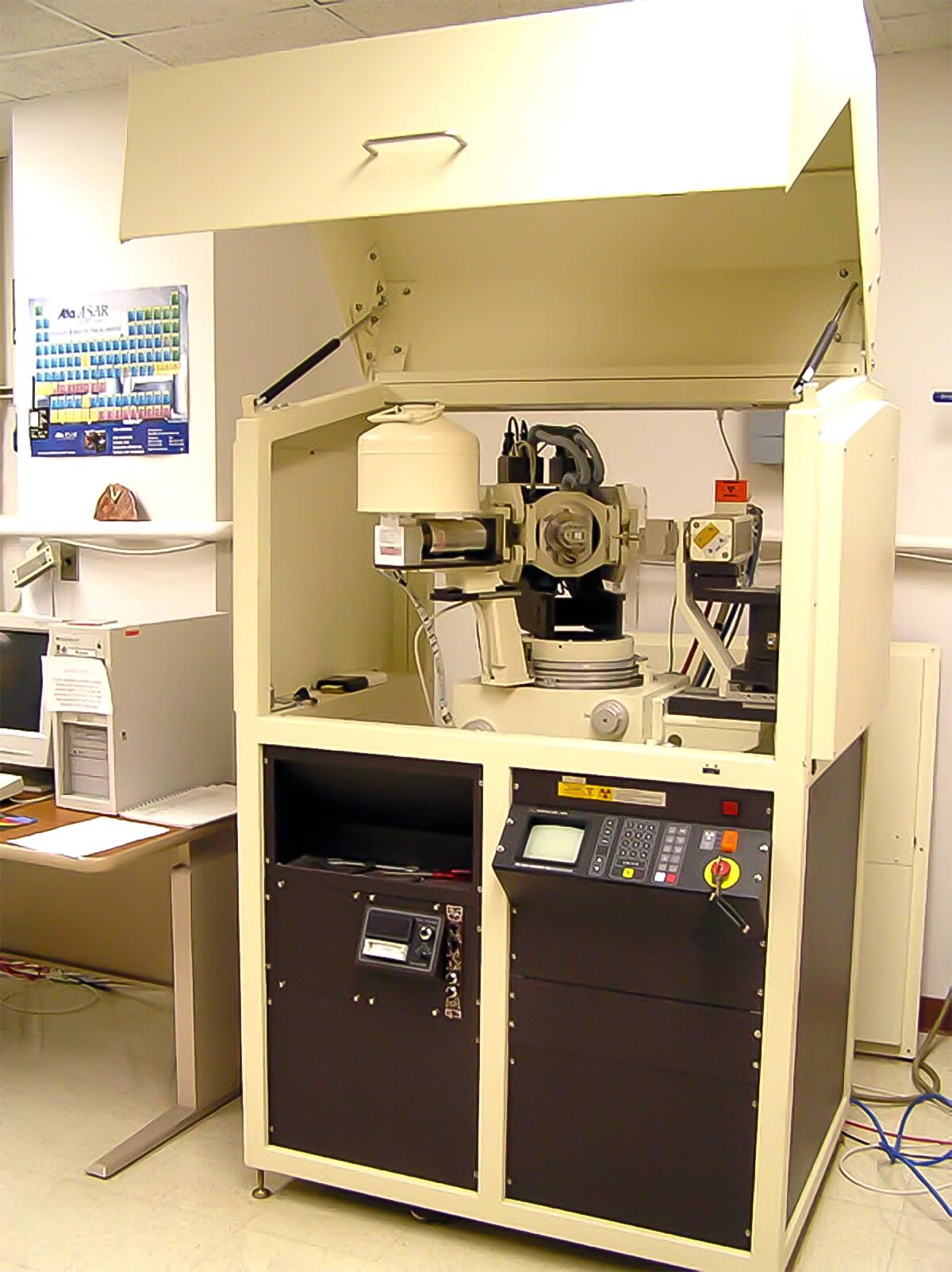

The Scintag XDS2000 a 3-axis Pole figure, Texture, and Stress (PTS) horizontal goniometer configured with an LN2 cooled germanium semiconductor detector and IBM compatible workstation running Scintag XDS software in Windows NT environment.

Close up of the XRD PTS.


Remote Training and Collaboration

  • New cameras installed in both the instrument lab and sample preparation lab.
  • Huskycast (Panopto) recording for both cameras and lab computer monitors.
  • Zoom sharing available in both labs and computer monitors.


Pole figures are the graphical output of textural measurements. Texture is often defined as preferred orientation of crystallites. These measurements involve the study of variations in intensity of a single Bragg reflection as the sample is both tilted (psi) and rotated (phi) in a specially modified diffractometer. The graphical pole figure diagram presents contours that indicate intensity levels as a function of sample orientation.
