The Veeco Dimension 3000 provides various modes of atomic force microscopy.

Veeco Dimension 3000 AFM


Atomic force microscopy is a subset of scanning probe microscopy. The Veeco Dimension 3000 operates in both tapping and contact modes, with capabilities of topographic and phase imaging, lateral force microscopy, magnetic force microscopy, and adhesion force mapping. It is also used in measurements of surface and adhesion forces.

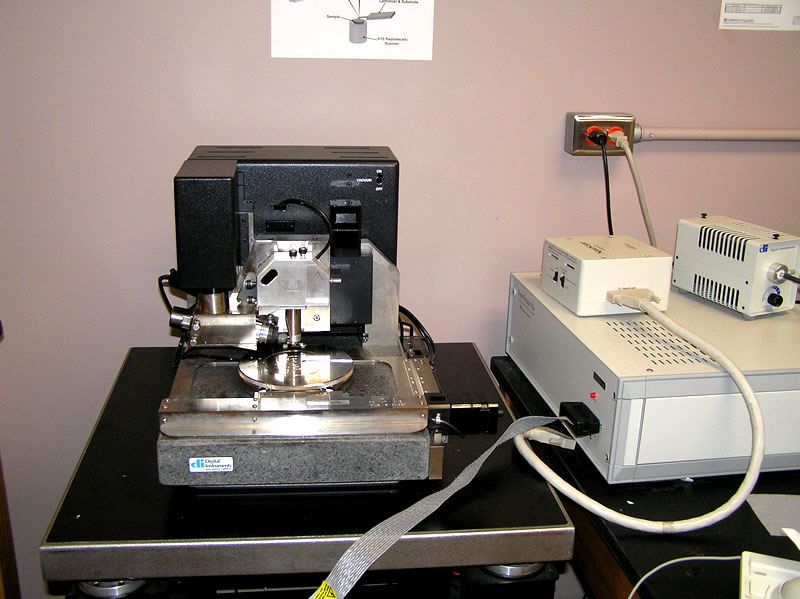

Close up of the Veeco AFM instrument.


The Veeco Dimension 3000 atomic force microscope (AFM) is used to analyze a variety of sample sizes and types. It can function in air or liquid, making it useful for biological studies. The sample is placed on a stage which moves in the x, y, and z directions via piezoelectric elements. A cantilever with a microscopic tip moves like a spring over the surface of the sample. A laser beam reflected off the end of the cantilever is recorded on photodiodes, producing an image of the surface topography. Cantilevers vary in size from 3-100 µm with tip radii of 10-30 nm. The size of the tip and flexibility of the cantilever contribute to the high resolution of the image, which can reach 10 p.m. The operating modes of the AFM (contact, non-contact, and tapping) and lateral force microscopy allow the user to access a variety of functions of the microscope. In addition to imaging, the AFM can measure the strength of inter-atomic forces and can sense the presence of individual surface atoms.


Cantilevers are located in a box in the AFM lab. There is a log sheet next to them. Facility users must record their use of tips.

General purpose tapping mode cantilevers are available for $21 each. Users will be charged for a new training cantilever. Afterwards, users can purchase any other type of cantilever themselves. Contact staff for a vendor list.
